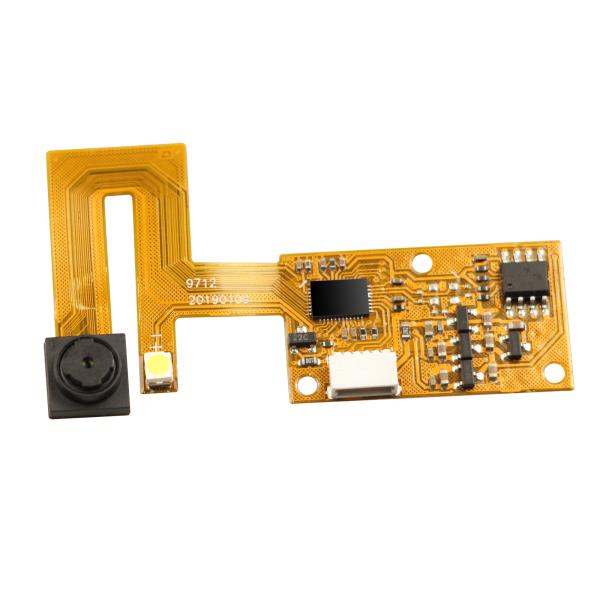

Customized OV9712 1MP Infrared Wide Angle Camera Module FF 720P HD USB

Customize factory High quality Omnivision OV9712 CMOS sensor Low Illumination 66degree wide angle Fixed Focus UVC HD 1MP USB Camera Module for artificial intelligence

Product Description

HD USB Camera Module

• The OV9712 uses OMNIVISION's proprietary OmniPixel®3-HS high-sensitivity pixel technology with a pixel size of 3 µm x 3 µm, which can produce high-definition images of 1280H x 720V. Low-light sensitivity is up to 3.7 V/lux-second, providing clear images in almost all lighting conditions from bright daylight to almost complete darkness. The OV9712 has been re-optimized to improve quantum efficiency (QE), sensitivity and signal-to-noise ratio (SNR).

Low Light Camera Module

• The 1/4-inch OV9712 sensor provides full-frame, subsampled or windowed 8-bit/10-bit images in RAW RGB format through a digital video port, and users have full control over image quality, format and output data transmission. The OV9712 has a chief ray angle (CRA) of 25°. The OV9712 is packaged in a CSP package and operates over a temperature range of -30°C to +70°C

OV9712 Mini Camera Functions and Features

■High sensitivity for low light operation
■Ultra-low power consumption and low cost
■Automatic image control functions:
-Automatic exposure control (AEC)
-Automatic gain control (AGC)
-Automatic white balance (AWB)
-Automatic band filter (ABF)
-Automatic black level calibration (ABLC)
■Programmable control:
-Frame rate
-AEC/AGC 16-zone size/position/weight control
-Mirror and flip
-Crop and window
■Image quality control:
-Lens correction
-Defective pixel elimination
■Support horizontal and vertical subsampling
■Support black sun elimination
■Support internal and external frame cancellation
■Standard serial camera control bus (SCCB) interface
■Digital video port (DVP) parallel output interface
■Embedded one-time programmable (OTP) memory
■On-chip phase-locked loop (PLL)
■Built-in 1.5V core regulator
■Output supports raw RGB Supported image sizes:
-WXGA(1Z80x800)
-HD 720p(1280x720)
-VGA(640x480)

CMOS Camera Module Applications

Webcams, driving recorders, smart doorbells, sports cameras, drone cameras, industrial inspection, reversing images, medical equipment, smart homes, ATMs, robot vision cameras, face recognition, electronic products and other applications.

Specifications: OV9712 FUII HD Camera
